側裝小型浮球液位開關
ü 經典設計，尺寸緊湊。 Classic design， compact size。
ü 無待機功率消耗。No standby power requirement
ü 客戶可自定義動作距離，線長和端子。Customer can define activated distance, cable length and connecter
ü 密封設計，可工作于惡劣環境，性能穩定，壽命超長。Hermetically sealed, suit to tough environment, performance is stable and life is long.
廣泛應用于空調、加濕機等家用電器領域。Widely used in air conditioning system and humidifier and other household appliances.
電氣參數:
| 觸點形式 Contact form | 常開型 Normally open | 常閉型 Normally closed | 高電壓常開型 Normally open high voltage | 高電壓常閉型 Normally closed high voltage | 單極雙投型 Change over |
| 最大觸點容量 contact rating max. | 10W | 50W | 5W | ||
| 最大開關電壓 Switching voltage max. | DC200V AC140V | DC220V AC250V | DC175V AC125V | ||
| 最小擊穿電壓 Breakdown voltage min. | 250V | 580V | 200V | ||
| 最大負載電流 Carry current max. | DC1.0A | DC3.0A | 0.5A | ||
| 最大開關電流 Switching current max. | 0.5A | 1.0A | DC0.4A AC0.28A | ||
| 最大接觸抗阻 Contact resistance initial max | 0.2Ω | 0.2Ω | 0.2Ω | ||
| 最小絕緣抗阻 Insulation resistance min. | 106 mΩ | 106 mΩ | 106 mΩ | ||
| 工作溫度 Operating temperature | -20~+80℃ | -20~+80℃ | -20~+80℃ | ||

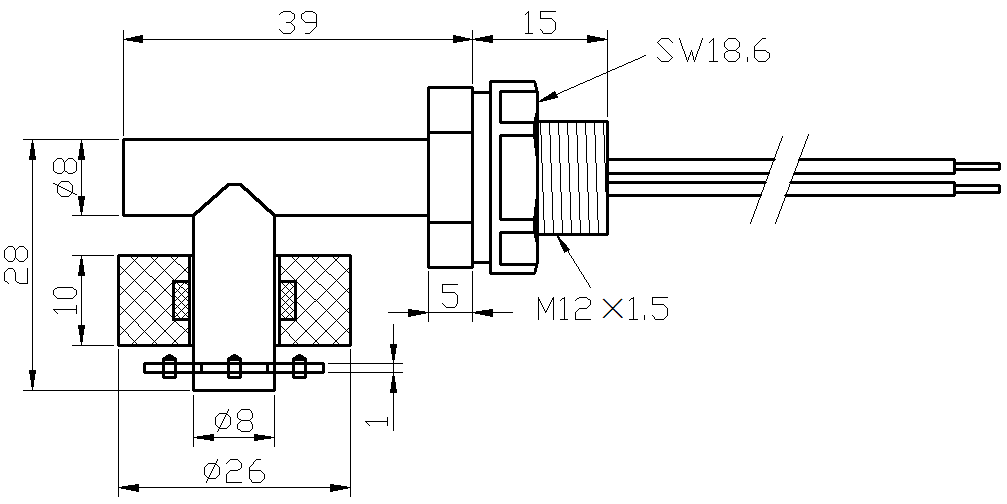

規格圖紙：

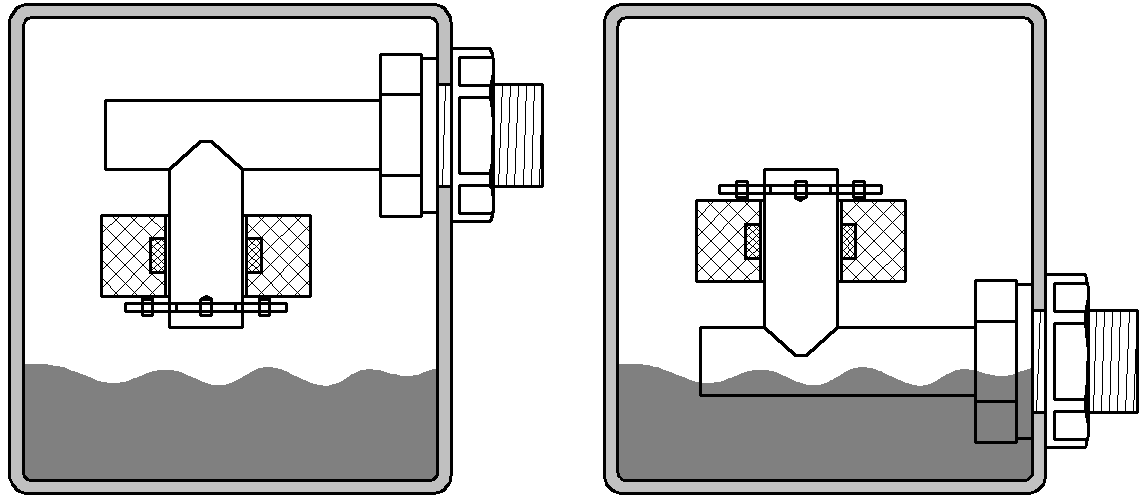

安裝示意圖：
